Technology & Function

Implant

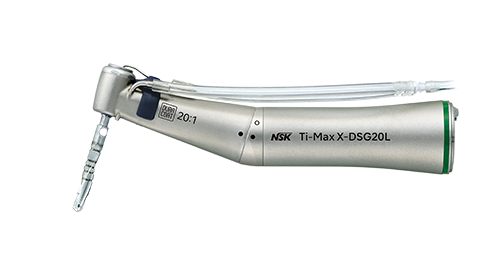

X-DSG20L20:1

  • Surgical Applications/X-DSG20L
    • Optic
    • Model:X-DSG20L
    • Order Code:C1068
    • Non-Optic
    • Model:X-DSG20
    • Order Code:C1067

    Specifications

    • Gear Ratio
    • 20:1 Reduction
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 80 Ncm

    Features

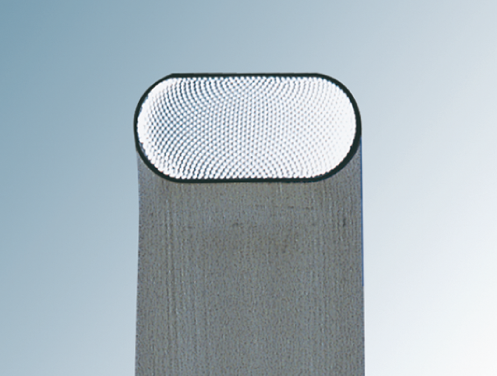

    • Cellular Glass Optics

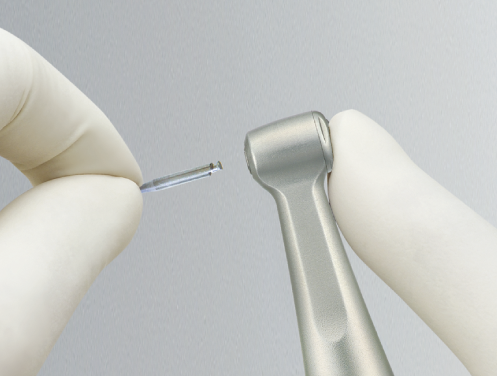

    • Push Button Chuck
    • Double Sealing System

    Lamineer Tips not included

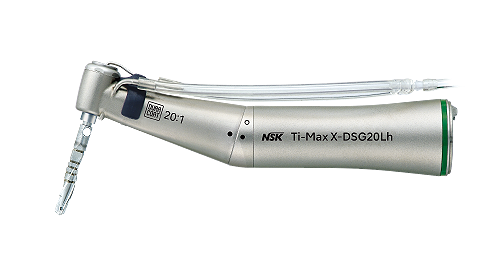

X-DSG20Lh20:1

  • Surgical Applications/X-DSG20Lh
    • Optic
    • Model:X-DSG20Lh
    • Order Code:C1076
    • Non-Optic
    • Model:X-DSG20h
    • Order Code:C1075

    Specifications

    • Gear Ratio
    • 20:1 Reduction
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 80 Ncm

    Features

    • Cellular Glass Optics
    • Push Button Chuck
    • Hexagon Chucking System
    • Double Sealing System

    Lamineer tips not included

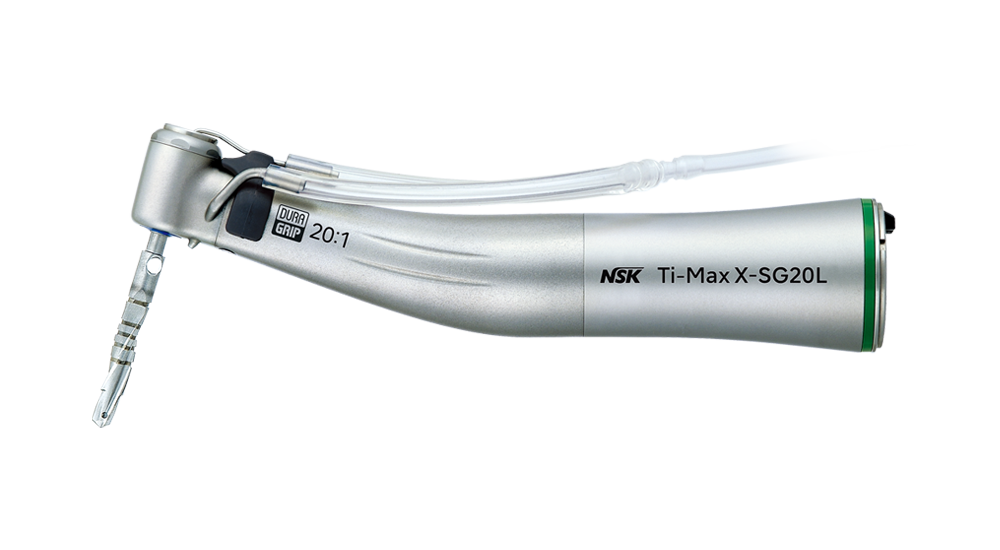

X-SG20L20:1

  • Surgical Applications/X-SG20L
    • Optic
    • Model:X-SG20L
    • Order Code:C1003

    Specifications

    • Gear Ratio
    • 20:1 Reduction
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 80 Ncm

    Features

    • Cellular Glass Optics
    • Push Button Chuck
    • Double Sealing System

nanoSG20LS20:1

  • nanoSG20LS
    • Optic
    • Model:nanoSG20LS
    • Order Code:C1103

    Specifications

    • Gear Ratio
    • 20:1 Reduction
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 80 Ncm

    Features

    • Cellular Glass Optics
    • Push Button Chuck
    • Double Sealing System

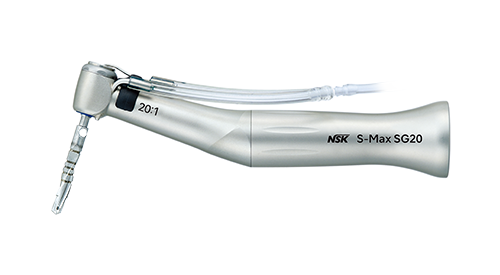

SG2020:1

  • SG20
    • Non-Optic
    • Model:SG20
    • Order Code:C1010

    Specifications

    • Gear Ratio
    • 20:1 Reduction
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)
    • Body Material
    • Stainless
    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 80 Ncm

    Features

    • Push Button Chuck
    • Double Sealing System

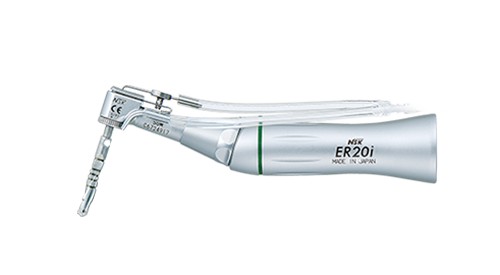

SGM-ER16i / SGM-ER20i / SGM-ER32i

  • SGM-ER16i / SGM-ER20i / SGM-ER32i
    • Non-Optic
    • Model:SGM-ER16i
    • Order Code:Y110126
    • Non-Optic
    • Model:SGM-ER20i
    • Order Code:Y110127
    • Non-Optic
    • Model:SGM-ER32i
    • Order Code:Y110128

    Specifications

    • Max Speed
    • 2,500 min-1(16:1), 2,000 min-1(20:1), 1,250 min-1(32:1)
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)

    Features

    • with Wrench for Handpiece Attachment

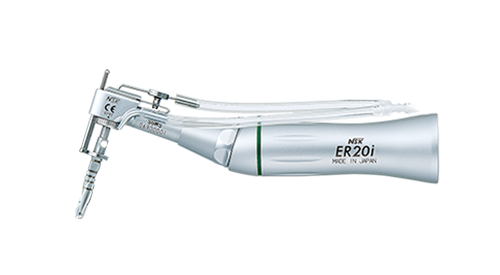

SGMS-ER20i20:1

  • SGMS-ER20i
    • Non-Optic
    • Model:SGMS-ER20i
    • Order Code:Y110147

    Specifications

    • Max Speed
    • 2,000 min-1
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)

    Features

    • Two Depth Indicators
    • Wrench for Handpiece Attachment
    • Ruler

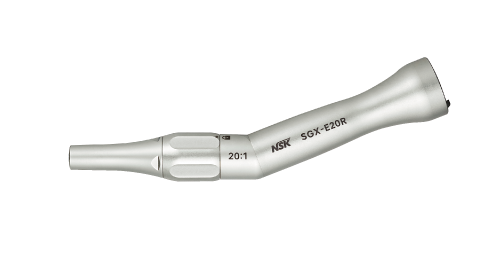

SGX-E20R20:1

  • SGX-E20R
    • Non-Optic
    • Model:SGX-E20R
    • Order Code:HA1200

    Specifications

    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 50 Ncm
    • Spray
    • External Cooling
    • Body
    • Stainless

    Features

    • Twist Chuck
    • Angle Handpiece

    For Osteotomy preparation, insertion of Zygoma implants for Maxillofacial, oral surgery

Contra-Angle (Increasing)

X-SG93L1:3

  • Surgical Applications/X-SG93L
    • Optic
    • Model:X-SG93L
    • Order Code:C1004
    • Non-Optic
    • Model:X-SG93
    • Order Code:C1007

    Specifications

    • Gear Ratio
    • 1:3 Increasing
    • For
    • FG Burs (Ø1.6)
    • Water Spray
    • Triple Spray / External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 120,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck

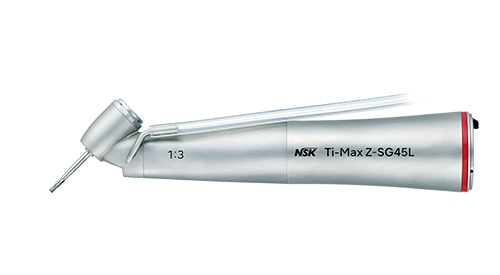

Z-SG45L1:3

  • Z-SG45L
    • Optic
    • Model:Z-SG45L
    • Order Code:C1107
    • Non-Optic
    • Model:Z-SG45
    • Order Code:C1108

    Specifications

    • Gear Ratio
    • 1:3 Increasing
    • For
    • FG Burs (Ø1.6)
    • Head
    • 45° Angle Head
    • Water Spray
    • Triple Spray / External cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 120,000 min-1

    Features

    • DLC Coating
    • Anti Heat System
    • Cellular Glass Optics
    • Ceramic Bearings
    • Clean Head System
    • Push Button Chuck

Contra-angle (Direct Drive)

X-SG25L1:1

  • Surgical Applications2/X-SG25L
    • Optic
    • Model:X-SG25L
    • Order Code:C1011

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • CA Burs (Ø2.35)
    • Water Spray
    • External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck

X-SG65L1:1

  • Surgical Applications/X-SG65L
    • Optic
    • Model:X-SG65L
    • Order Code:H1009
    • Non-Optic
    • Model:X-SG65
    • Order Code:H1038

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • HP Burs (Ø2.35)
    • Water Spray
    • External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System

Micro Surgery

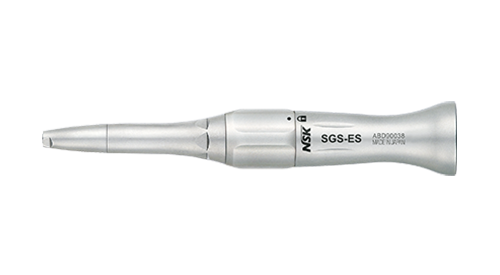

SGS-ES1:1

  • SGS-ES
    • Non-Optic
    • Model: SGS-ES
    • Order Code:H264

    Specifications

    • Head
    • Straight Handpieces
    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • Surgical Burs (Ø2.35)
    • Max Speed
    • 40,000 min-1

    Features

    • Twist Chuck

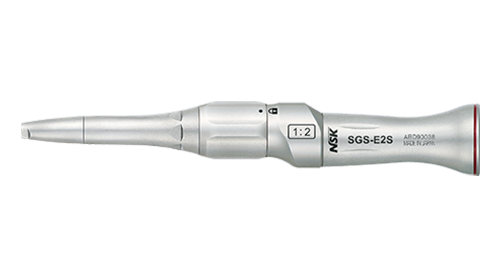

SGS-E2S1:2

  • SGS-E2S
    • Non-Optic
    • Model:SGS-E2S
    • Order Code:H266

    Specifications

    • Head
    • Straight Handpieces
    • Gear Ratio
    • 1:2 Increasing
    • For
    • Surgical Burs (Ø2.35)
    • Max Speed
    • 80,000 min-1

    Features

    • Twist Chuck

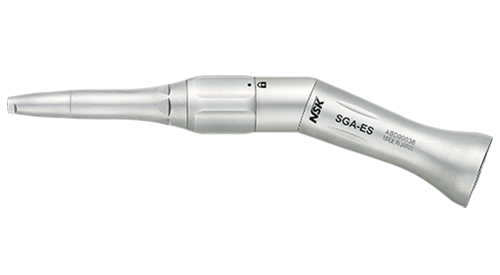

SGA-ES1:1

  • SGA-ES
    • Non-Optic
    • Model:SGA-ES
    • Order Code:H263

    Specifications

    • Head
    • 20° Angle Handpieces
    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • For Surgical Burs (Ø2.35)
    • Max Speed
    • 40,000 min-1

    Features

    • Twist chuck

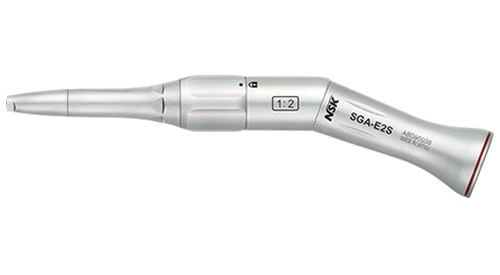

SGA-E2S1:2

  • SGA-E2S
    • Non-Optic
    • Model:SGA-E2S
    • Order Code:H265

    Specifications

    • Head
    • 20° Angle Handpieces
    • Gear Ratio
    • 1:2 Increasing
    • For
    • Surgical Burs (Ø2.35)
    • Max Speed
    • 80,000 min-1

    Features

    • Twist chuck

Micro Saw

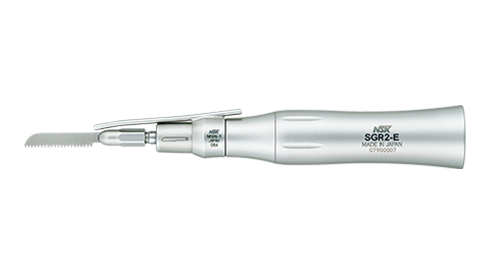

SGR2-E3:1

  • SGR2-E
    • Non-Optic
    • Model:SGR2-E
    • Order Code:SH162

    Specifications

    • Gear Ratio
    • 3:1 Reduction
    • Max
    • 12,600 Strokes / min

    Features

    • External Spray Nozzle

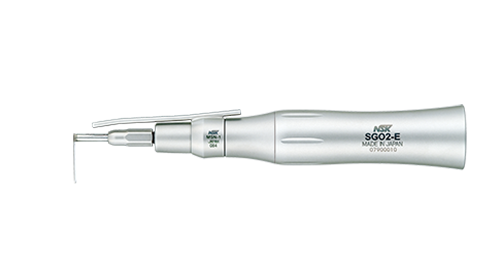

SGO2-E3:1

  • SGO2-E
    • Non-Optic
    • Model:SGO2-E
    • Order Code:SH164

    Specifications

    • Gear Ratio
    • 3:1 Reduction
    • Max
    • 12,800 Strokes / min

    Features

    • External Spray Nozzle

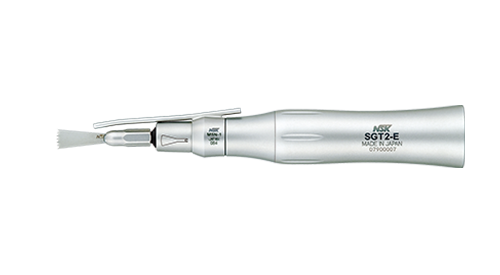

SGT2-E3:1

  • SGT2-E
    • Non-Optic
    • Model:SGT2-E
    • Order Code:SH163

    Specifications

    • Gear Ratio
    • 3:1 Reduction
    • Max
    • 12,600 Strokes / min

    Features

    • External Spray Nozzle

Blades for Reciprocating

  • Blades for Reciprocating
    • Model:SGR-1
    • Order Code:Y900072

    Features

    • Blade Thickness 0.35 mm
    • Pack of 10 Blades
  • Blades for Reciprocating
    • Model:SGR-2
    • Order Code:Y900073

    Features

    • Blade Thickness 0.35 mm
    • Pack of 10 Blades
  • Blades for Reciprocating
    • Model:SGR-3
    • Order Code:Y900074

    Features

    • Blade Thickness 0.35 mm
    • Pack of 10 Blades

Blades for Oscillating

  • Blades for Oscillating
    • Model:SGO-1
    • Order Code:H174034

    Features

    • Blade Thickness 0.3 mm
    • Single Blade
  • Blades for Oscillating
    • Model:SGO-2
    • Order Code:H174044

    Features

    • Blade Thickness 0.3 mm
    • Single Blade
  • Blades for Oscillating
    • Model:SGO-3
    • Order Code:H174031

    Features

    • Blade Thickness 0.3 mm
    • Single Blade
  • Blades for Oscillating
    • Model:SGO-4
    • Order Code:H174041

    Features

    • Blade Thickness 0.3 mm
    • Single Blade
  • Blades for Oscillating
    • Model:SGO-5
    • Order Code:H174032

    Features

    • Blade Thickness 0.35 mm
    • Single Blade
  • Blades for Oscillating
    • Model:SGO-6
    • Order Code:H174042

    Features

    • Blade Thickness 0.35 mm
    • Single Blade

Blades for Sagittal

  • Blades for Sagittal
    • Model:SGT-1
    • Order Code:Y900075

    Features

    • Blade Thickness 0.35 mm
    • Pack of 10 Blades
  • Blades for Sagittal
    • Model:SGT-2
    • Order Code:Y900076

    Features

    • Blade Thickness 0.35 mm
    • Pack of 10 Blades
