EX Series

General Applications

FPB-EC1:1

- Non-Optic
- Model:FPB-EC
- Order Code:Y110158
Specifications
- Gear Ratio
- 1:1 Direct Drive
- For
- CA Burs (Ø2.35)
- Max Speed
- 40,000 min^-1
Features
- Clean Head System
- Push Button Chuck
- Ball Bearing

BB-EC1:1

- Non-Optic
- Model:BB-EC
- Order Code:Y110159
Specifications
- Gear Ratio
- 1:1 Direct Drive
- For
- CA Burs (Ø2.35)
- Max Speed
- 40,000 min^-1
Features
- Ball Bearing
- Latch Type

NBBW-EC1:1

- Non-Optic
- Model:NBBW-EC
- Order Code:Y110160
Specifications
- Gear Ratio
- 1:1 Direct Drive
- For
- CA Burs (Ø2.35)
- Water Spray
- With Water Nozzle
- Max Speed
- 40,000 min^-1
Features
- Ball Bearing
- Latch Type

NAC-EC1:1

- Non-Optic
- Model:NAC-EC
- Order Code:Y110148
Specifications
- Gear Ratio
- 1:1 Direct Drive
- For
- CA Burs (Ø2.35)
- Max Speed
- 30,000 min^-1
Features
- Latch Type

NM-EC1:1

- Non-Optic
- Model:NM-EC
- Order Code:Y110161
Specifications
- Head
- Miniature Head
- Gear Ratio
- 1:1 Direct Drive
- For
- CA Burs (Ø2.35)
- Max Speed
- 30,000 min^-1
Features
- Latch Type

FFB-EC1:1

- Non-Optic
- Model:FFB-EC
- Order Code:Y110162
Specifications
- Gear Ratio
- 1:1 Direct Drive
- For
- FG Burs (Ø1.6)
- Max Speed
- 40,000 min^-1
Features
- Clean Head System
- Push Button Chuck

Endodontics Applications

MP-ER6464:1

- Non-Optic
- Model:MP-ER64
- Order Code:Y110142
Specifications
- Head
- Miniature Head
- Gear Ratio
- 64:1 Reduction
- For
- Engine Files / 360° Rotation
- Max Speed
- 300 min^-1
Features
- Push Button Chuck

MPA-ER6464:1

- Non-Optic
- Model:MPA-ER64
- Order Code:Y110144
Specifications
- Head
- Miniature Head
- Gear Ratio
- 64:1 Reduction
- For
- Engine Files / 360° Rotation / Connection for Apex Locator (Long Shank Files)
- Max Speed
- 300 min^-1
Features
- Push Button Chuck

MPAS-ER6464:1

- Non-Optic
- Model:MPAS-ER64
- Order Code:Y110146
Specifications
- Head
- Miniature Head
- Gear Ratio
- 64:1 Reduction
- For
- 360° Rotation / Connection for Apex Locator (Long Shank Files)
- Max Speed
- 300 min^-1
Features
- Push Button Chuck

NRS2-EC10:1

- Non-Optic
- Model:NRS2-EC
- Order Code:Y110163
Specifications
- Gear Ratio
- 10 :1 Reduction Head
- For
- CA Burs (Ø2.35)
- Max Speed
- 3,000 min^-1
Features
- Clean Head System
- Push Button Chuck

EX-ENDO 128

- Model:EX-ENDO 128
- Order Code:C592
Specifications
- Gear Ratio
- 128:1 Reduction
- For
- Ni-Ti Files (Ø2.35) / 360° Rotation
Features
- Exceptionally Small Head
- Push Button Chuck

NRS2-ER1010:1

- Non-Optic
- Model:NRS2-ER10
- Order Code:Y110143
Specifications
- Gear Ratio
- 10:1 Reduction Handpiece & 10:1 Reduction Head
- For
- Engine Files / 360° Rotation
- Max Speed
- 300 min^-1
Features
- Clean Head System
- Push Button Chuck

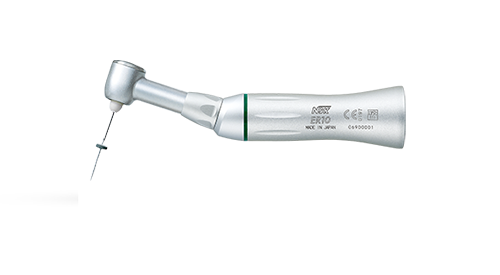

TEP-ER1010:1

- Non-Optic
- Model:TEP-ER10
- Order Code:Y110145
Specifications
- Gear Ratio
- 10:1 Reduction
- For
- Hand Files / 60° Twist
- Max Speed
- 4,000 min^-1
Features
- Push Button Chuck

Prophylaxis Applications

AR-EC (S)1:1

- Non-Optic
- Model:AR-EC (S)
- Order Code:Y110164
- Non-Optic
- Model:AR-ECM (S)
- Order Code:Y110179
Specifications
- Gear Ratio
- 1:1 Direct Drive
- For
- Screw-in Cups and Brushes / 360° Rotation
- Max Speed
- 5,000 min^-1

AR-EC (K)1:1

- Non-Optic
- Model:AR-EC (K)
- Order Code:Y110165
- Non-Optic
- Model:AR-ECM (K)
- Order Code:Y110180
Specifications
- Gear Ratio
- 1:1 Direct Drive
- For
- Snap-on Cups / 360° Rotation
- Max Speed
- 5,000 min^-1

AR-ER4 (S)4:1

- Non-Optic
- Model:AR-ER4 (S)
- Order Code:Y110140
Specifications
- Gear Ratio
- 4:1 Reduction
- For
- Screw-in Cups and Brushes / 360° Rotation
- Max Speed
- 5,000 min^-1

EVA-ER44:1

- Non-Optic
- Model:EVA-ER4
- Order Code:Y110141
Specifications
- Gear Ratio
- 4:1 Reduction
- For
- EVA Tips / Vertical Reciprocating (Stroke Length 1.4 mm)
- Max Speed
- 10,000 min^-1

Straight Handpieces

EX-6B1:1

- Non-Optic
- Model:EX-6B
- Order Code:H260
Specifications
- Gear Ratio
- 1:1 Direct Drive
- For
- HP Burs (Ø2.35)
- Max Speed
- 40,000 min^-1
Features
- Clean Head System

EX-5B4:1

- Non-Optic
- Model:EX-5B
- Order Code:H262
Specifications
- Gear Ratio
- 4:1 Reduction
- For
- HP Burs (Ø2.35)
- Max Speed
- 10,000 min^-1
Features
- Clean Head System

Heads for General Applications

- Non-Optic
- Model:FPB-Y
- Order Code:C875
Specifications
- For
- CA Burs (Ø2.35)
- Max Speed
- 40,000 min^-1
Features
- Clean Head System
- Push Button Chuck
- Ball Bearing

- Non-Optic
- Model:NAC-Y
- Order Code:C032002
Specifications
- For
- CA Burs (Ø2.35)
- Max Speed
- 30,000 min^-1
Features
- Latch type

- Non-Optic
- Model:BB-Y
- Order Code:C037
Specifications
- For
- CA Burs (Ø2.35)
- Max Speed
- 40,000 min^-1
Features
- Ball Bearing
- Latch Type

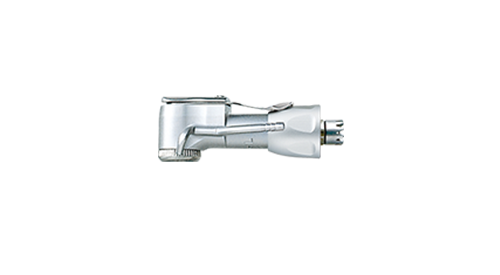

- Non-Optic
- Model:NBBW-Y
- Order Code:C211
Specifications
- For
- CA Burs (Ø2.35)
- Water Spray
- With Water Nozzle
- Max Speed
- 40,000 min^-1
Features
- Ball Bearing
- Latch Type

- Model:NM-Y
- Order Code:C247
Specifications
- Head
- Miniature Head
- For
- CA Burs (Ø2.35)
- Max Speed
- 30,000 min^-1
Features
- Latch Type

- Non-Optic
- Model:FFB-Y
- Order Code:C884
Specifications
- For
- FG Burs (Ø1.6)
- Max Speed
- 40,000 min^-1
Features
- Clean Head System
- Push Button Chuck

Heads for Endodontics Applications

- Non-Optic
- Model:MP-Y
- Order Code:C547
Specifications
- Head
- Miniature Head
- Max Speed
- 20,000 min^-1
Features
- Push Button Chuck

- Non-Optic
- Model:MPA-Y
- Order Code:C548
Specifications
- Head
- Miniature Head
- Max Speed
- 20,000 min^-1
Features
- Connection for Apex Locator (For Long Shank)
- Push Button Chuck

- Non-Optic
- Model:MPAS-Y
- Order Code:C882
Specifications
- Head
- Miniature Head
- Max Speed
- 20,000 min^-1
Contents
- Connection for Apex Locator (For Short Shank)
- Push Button Chuck

- Non-Optic
- Model:NML-Y
- Order Code:C874
Specifications
- Head
- Miniature Head
- For
- Engine Files (Ø2.35) / 360° Rotation
- Max Speed
- 30,000 min^-1
Features
- Latch Type

- Non-Optic
- Model:NRS2-Y
- Order Code:C549
Specifications
- Gear Ratio
- 10:1 Reduction
- For
- Engine Files (Ø2.35) / 360° Rotation
- Max Speed
- 3,000 min^-1
Features
- Clean Head System
- Push Button Chuck

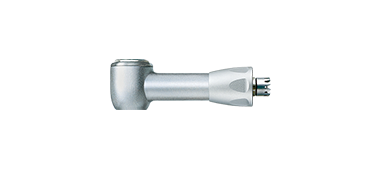

- Non-Optic
- Model:TEP-Y
- Order Code:C837
Specifications
- For
- Hand Files / 60° Twist
- Max Speed
- 4,000 min^-1
Features
- Push Button Chuck

- Non-Optic
- Model:TEQ-Y
- Order Code:C849
Specifications
- For
- Engine Files (Ø2.35) / 80°Twist
- Max Speed
- 4,000 min^-1
Features
- Push Button Chuck

- Non-Optic
- Model:VM-Y
- Order Code:C765
Specifications
- For
- Hand Files (Ø2.35) /
  Vertical Reciprocating (Stroke Length 0.4 mm)
- Max Speed
- 4,000 min^-1
Features
- Push Button Chuck

Heads for Prophylaxis Applications

- Non-Optic
- Model:AR-Y (K)
- Order Code:C188
Specifications
- For
- Snap-on Cups
- Max Speed
- 5,000 min^-1

- Non-Optic
- Model:EVA-Y
- Order Code:C235
Specifications
- For
- EVA Tips / Vertical Reciprocating (Stroke Length 1.4 mm)
- Max Speed
- 10,000 min^-1

- Non-Optic
- Model:AR-Y (S)
- Order Code:C187
Specifications
- For
- Screw-in Cups and Brushes
- Max Speed
- 5,000 min^-1

Shanks

- Model:EC-30
- Order Code:C100008
- Model:EC-30M
- Order Code:C100007
Specifications
- Gear Ratio
- 1:1 Direct Drive

- Model:ER4
- Order Code:C634
- Model:ER4M
- Order Code:C634002
Specifications
- Gear Ratio
- 4:1 Reduction

- Model:ER10
- Order Code:C635
- Model:ER10M
- Order Code:C635002
Specifications
- Gear Ratio
- 10:1 Reduction

- Model:ER16
- Order Code:C636
- Model:ER16M
- Order Code:C636002
Specifications
- Gear Ratio
- 16:1 Reduction

- Model:ER64
- Order Code:C637
- Model:ER64M
- Order Code:C637002
Specifications
- Gear Ratio
- 64:1 Reduction
