Technology & Function

  • Two-Way Spray Function
    Two-Way Spray Function

    The world’s first two-way spray function allows you to instantly choose between a mist or jet spray. Chose in an instant depending on the conditions and procedure. The water jet spray prevents subcutaneous emphysema in surgical procedures whilst still cooling during restorative procedures. When spray mist can be used again without restriction just switch again. No equipment modification required. (Z95L)

  • Titanium Body
    Titanium Body

    Titanium body*. Light and very strong pure titanium is used for the body. The light handpiece reduces the burden on the hands during operations, and its enhanced hardness also improves its ability for autoclave sterilization. The biocompatible properties of titanium eliminate concern over allergies to metals.
    *Titanium is used only for the exterior parts, and not for the interior.

  • Microfilter
    Microfilter

    Microfilter to prevent particles from entering the water spray system to guarantee optimum water spray cooling at all times.

  • DURAGRIP
    DURAGRIP

    An ergonomic body shape and the introduction of new DURAGRIP coating provide superior grip and handling comfort.

  • Clean Head System
    Clean Head System

    The Clean Head System has an anti-suck back mechanism that stops blood and foreign matter from entering the head from the oral cavity. As a result, the ball bearings and mechanical parts last longer.

  • Anti Heat System
    Anti Heat System

    NSK's unique head cap design helps to limit heat generation and to disperse heat generation during treatment. NSK is always putting patient's safety first. (With Z95L / Z85L / Z84L)

Ti-Max Z Series

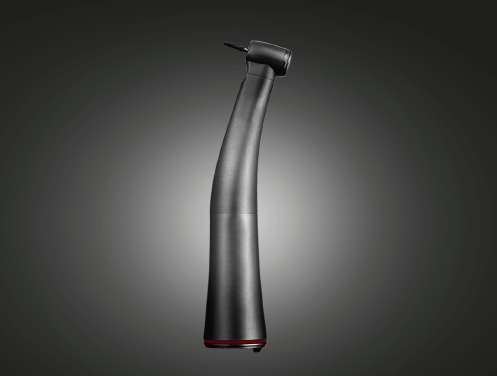

Ti-Max Z Contra-angle

Z95L 1:5

Z95L – from 2020

  • Optic
  • Model:Z95L
  • Order Code:C1034

Specifications

  • Gear Ratio
  • 1:5 Increasing
  • Coolant Design
  • Quattro Ports (with two way spray function)
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 200,000 min-1

Features

  • Anti Heat System
  • Cellular Glass Optics
  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck
  • Microfilter

Z85L 1:5

Z85L

  • Optic
  • Model:Z85L
  • Order Code:C1062

Specifications

  • Head
  • Miniature Head
  • Gear Ratio
  • 1:5 Increasing
  • For
  • FG Burs (Ø1.6)
  • Head Size
  • Ø8.9 x H 11.8 mm
  • Water Spray
  • Single Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 200,000 min-1

Features

  • Anti Heat System
  • Cellular Glass Optics
  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck
  • Microfilter
  • Exceptional Durability

* Short Shank burs only

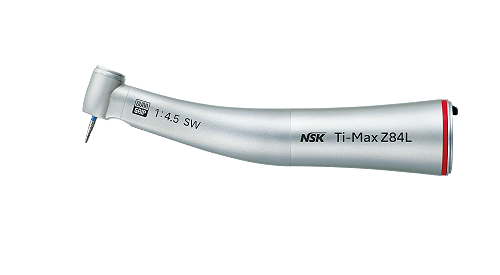

Z84L 1:4.5

Z84L

  • Optic
  • Model:Z84L
  • Order Code:C1135

Specifications

  • Head
  • Miniature Head
  • Gear Ratio
  • 1:4.5 Increasing
  • For
  • FG Burs (Ø1.6)
  • Head Size
  • Ø8.9 x H 12.6 mm
  • Water Spray
  • Quattro Spray (with two way spray function)
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 180,000 min-1

Features

  • Anti Heat System
  • Cellular Glass Optics
  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck
  • Microfilter
  • Exceptional Durability

* Short Shank burs only

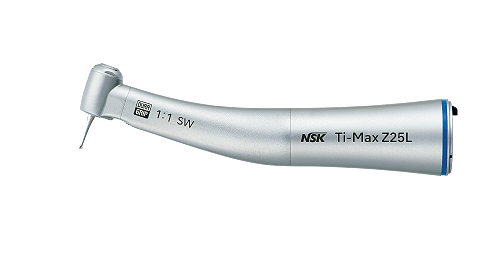

Z25L 1:1

Z25L

  • Optic
  • Model:Z25L
  • Order Code:C1038

Specifications

  • Gear Ratio
  • 1:1 Direct Drive
  • For
  • CA Burs (Ø2.35)
  • Head Size
  • Ø8.9 x H 13.7 mm
  • Water Spray
  • Single Spray (with two way spray function)
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 40,000 min-1

Features

  • Cellular Glass Optics
  • Clean Head System
  • Push Button Chuck
  • Microfilter

Z24L 1:1

Z24L

  • Optic
  • Model:Z24L
  • Order Code:C1126

Specifications

  • Gear Ratio
  • 1:1 Direct Drive
  • For
  • CA Burs (Ø2.35)
  • Head Size
  • Ø8.9 x H 12.3 mm
  • Water Spray
  • Single Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 40,000 min-1

Features

  • Cellular Glass Optics
  • Push Button Chuck
  • Microfilter

Z15L 4:1

Z15L

  • Optic
  • Model:Z15L
  • Order Code:C1039

Specifications

  • Gear Ratio
  • 4:1 Reduction
  • For
  • CA Burs (Ø2.35)
  • Head Size
  • Ø8.9 x H 13.4 mm
  • Water Spray
  • Single Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 10,000 min-1

Features

  • Cellular Glass Optics
  • Clean Head System
  • Push Button Chuck
  • Microfilter

Z10L 16:1

Z10L

  • Optic
  • Model:Z10L
  • Order Code:C1040

Specifications

  • Gear Ratio
  • 16:1 Reduction
  • For
  • CA Burs (Ø2.35)
  • Head Size
  • Ø8.9 x H 13.4 mm
  • Water Spray
  • Single Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 2,500 min-1

Features

  • Cellular Glass Optics
  • Clean Head System
  • Push Button Chuck
  • Microfilter
